Branding the Remote Update System (RUS) Installer
The Sentinel Remote Update System (RUS) is an executable utility that you can customize (brand) and send to your end users to enable secure, remote updating of the license and memory data of Sentinel protection keys after they are deployed. RUS branding enables you to associate the RUS utility with the Batch Code of the keys that you want to update. You can also define, format, and preview the GUI that is to be displayed in the RUS.
You can rebrand the RUS installer to include the name and logo of your company. You can use the formatting toolbar to give a professional look to your company name by adjusting the font size, type, color, and alignment. You can also provide a link to your company's official website. All changes made on this page are visible when you generate and run the RUS installer.
To rebrand and view the RUS installer:

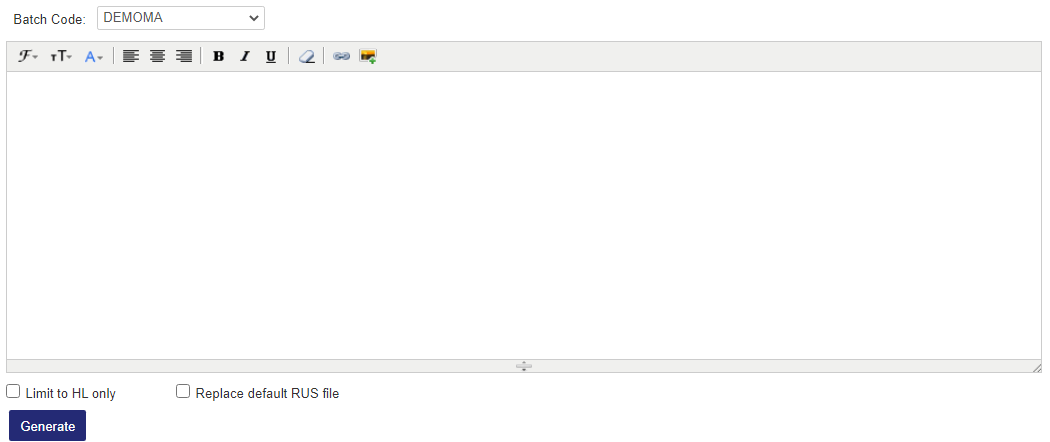

1.Open the RUS Branding tab, if it is not already open (Developer > RUS Branding).
2.From the Batch Code list, select a Batch Code.
3.In the text box, enter text (such as the company name). Select the text and apply the required formatting.
| To: | Do this: |
|---|---|
| Adjust the font and alignment | Select the text and apply the relevant formatting. |
| Clear the formatting | Select the text and click Remove Formatting  . |
| Add a hyperlink |
1.Select the text and click the Link button. 2.In the Link URL box, enter a website address (HTTP or HTTPS). To open the website in a different tab or window, select the Open in a new window check box. 3.In Description, enter a brief description about the website. 4.Click OK. |
| Insert your company logo |
1.Click the Insert Image button. 2.In Image URL, enter the location of the image. NOTE You can link to an image file stored on your machine or a website address starting with HTTP. Support for secure sites (HTTPS) is currently not available. 3.Click OK. |
| Make the generated RUS tool available only for HL keys |
Select the Limit to HL only check box. |
| Replace the default RUS file |
Select the Replace default RUS file check box. The generated RUS tool will overwrite the default RUS tool of Sentinel LDK-EMS. You can download the default RUS tool in the Generate License and Activation screens. For details, see Generating a V2C or V2CP File to Manually Activate a Product. |
4.Click Generate. The file downloads.
5.Save the file on your machine.
NOTE You can generate the RUS utility using Windows, Linux, or Macintosh, but you can run it only on Windows.
